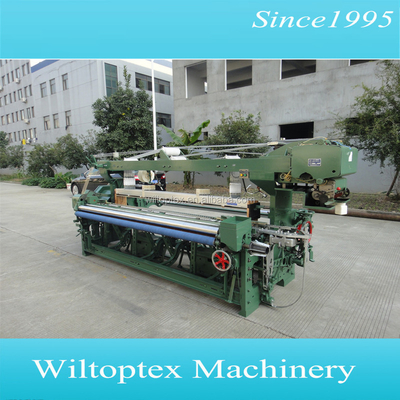

Name: Best fabric Good price HYRL-786 Flexible Rapier Loom with dobby
Brand: Best fabric Good price HYRL-786 Flexible Rapier Loom with dobby
SKU: HYRL786
Price: 4 USD
Availability: InStock
Rating: 4.5 (121 reviews)

Best fabric Good price HYRL-786 Flexible Rapier Loom with dobby

1.0 Sets

MOQ

$4,000.00 - $6,000.00

Precio

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Condition: New

Type: Dobby Weaving Machine

Application: Fabric

Production Capacity: 300sets / Month

Model Number: HYRL786

Dimension(L*W*H): 5400*1827*2120

Weight: 2400-2700kg

Power: 1.5-1.8kw

Warranty: 1 Year

After-sales Service Provided: Overseas service center available

Shedding: Dobby Shedding

Rotate Speed: 230-150rpm

Certificación: CE ISO

Información básica

Certificación: CE ISO

Model Number: HYRL786

Pago y Envío Términos

Packaging Details: Export Standard: Wooden Packing

Supply Ability: 150 Set/Sets per Month

Descripción de producto

HYRL 786 flexible rapier loom with 230 RPM

MAJOR TECHNICAL PARAMETERS:

HYRL-786 Flexible Rapier Loom is used to weave crude fibre(cotton,wool,hemp),chemical fibre and blending yarn etc

FEATURE:

It adopts big housing gear ,use heavy frame and double roller for take up. It’s speed more increase than HYRL-717 rapier loom, this loom can evidently improve unit area output and fabric quality. Also its suitability is wide.

Main specifications:

Reed width(cm)	150 180 200 230 250 280 330 340 360 390
Speed (R.P.M)	230-150
Weft selection	6 Colors( mechanic or electronic )
Yarn count	Cotton 7-60Ne,Wool 12-100Nm,Chemical fabric 100-650D
Dia.of warp bea (mm)	Φ600, Φ800
Dia.of rolling-up(mm)	Φ400
Heddle frame	16pcs
Insertion rate(m/min)	300-400
Electrical control	P.L.C
Motor power(KW)	1.5-1.8KW
Weight(kg)	1700-2200
Overall size(mm)	5400x1827x2120mm (330cm)

We can manufacture according to customer's requirement.

Fabric By this Machine

Factory Pictures

Exhibition

Please feel free to contact us.
